Under 8kg lightweight payload, quick mount for DJI FC100
Dual pumps & triple nozzles with 10-15MPa high pressure
Electric adjustable swing angle, flow rate & multi-angle nozzles
PSDK supported, 5G cloud for 24h unmanned PV cleaning
Replace risky manual work, fit all solar farm scenarios

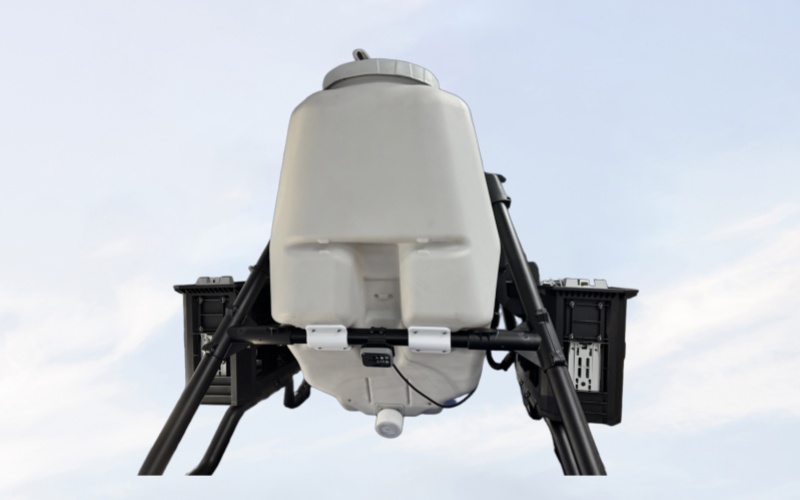

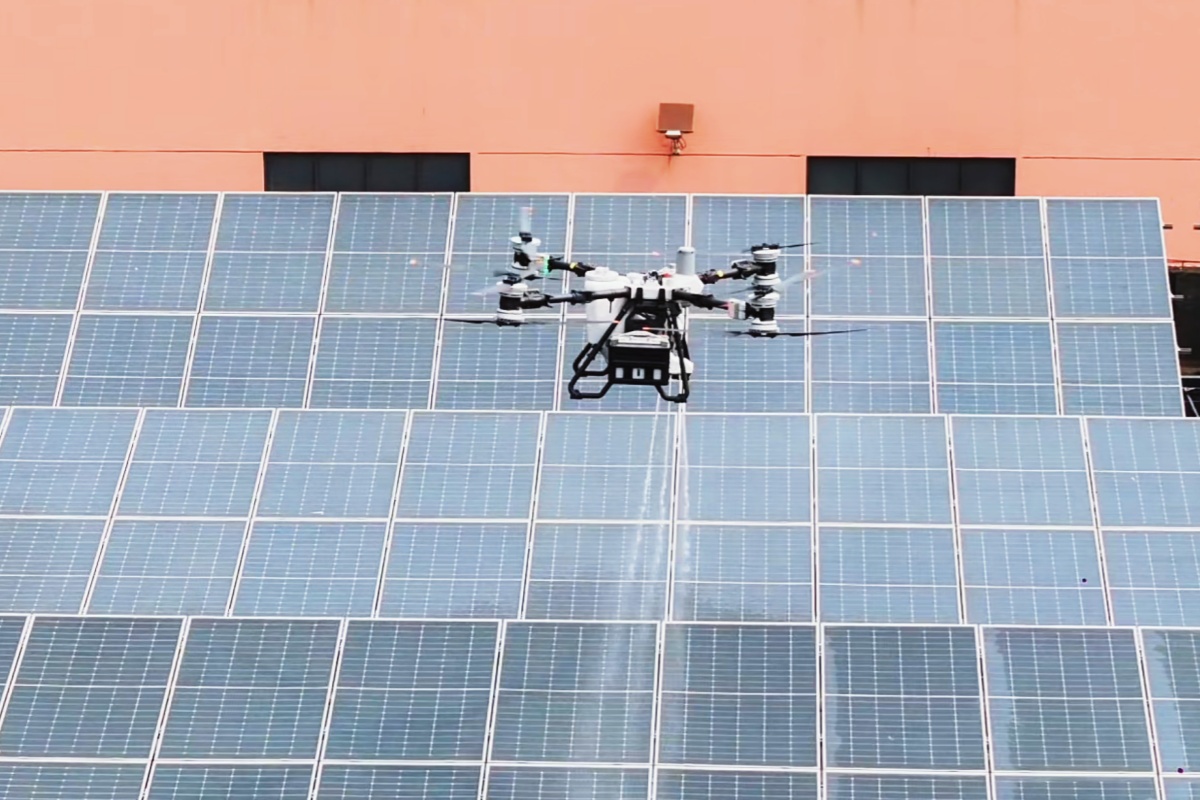

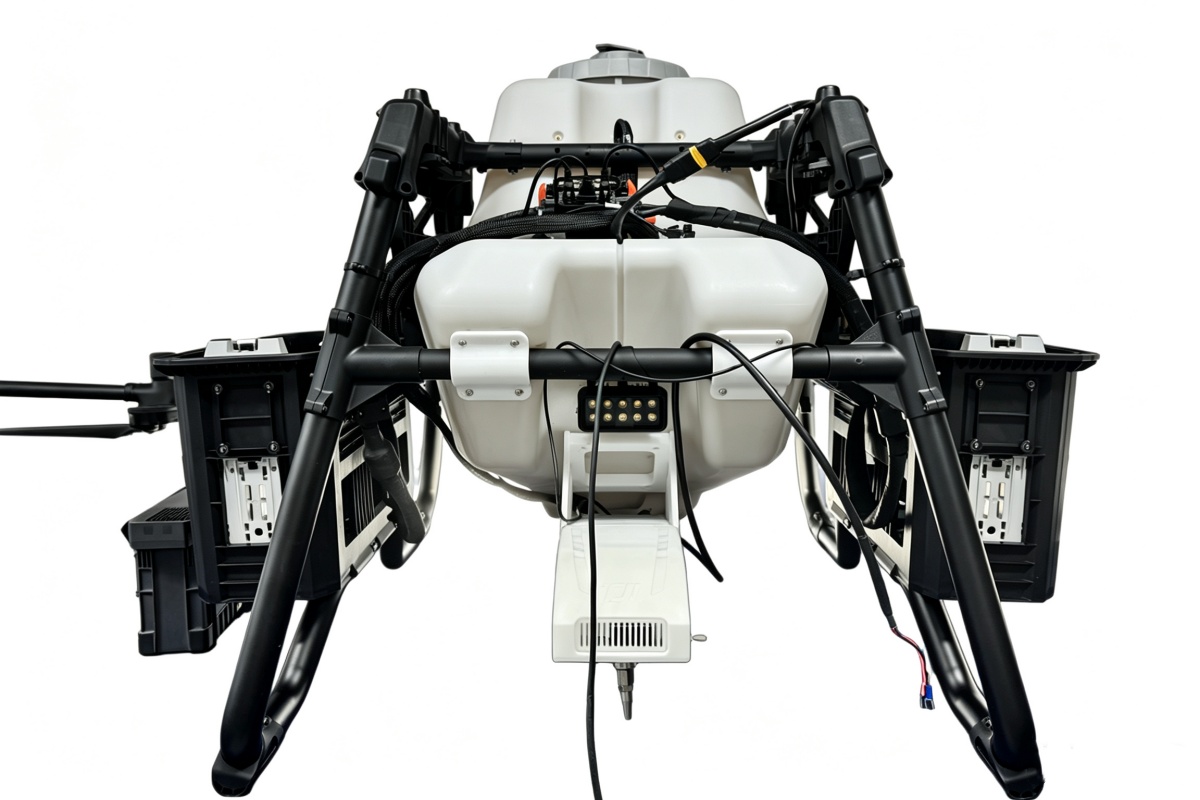

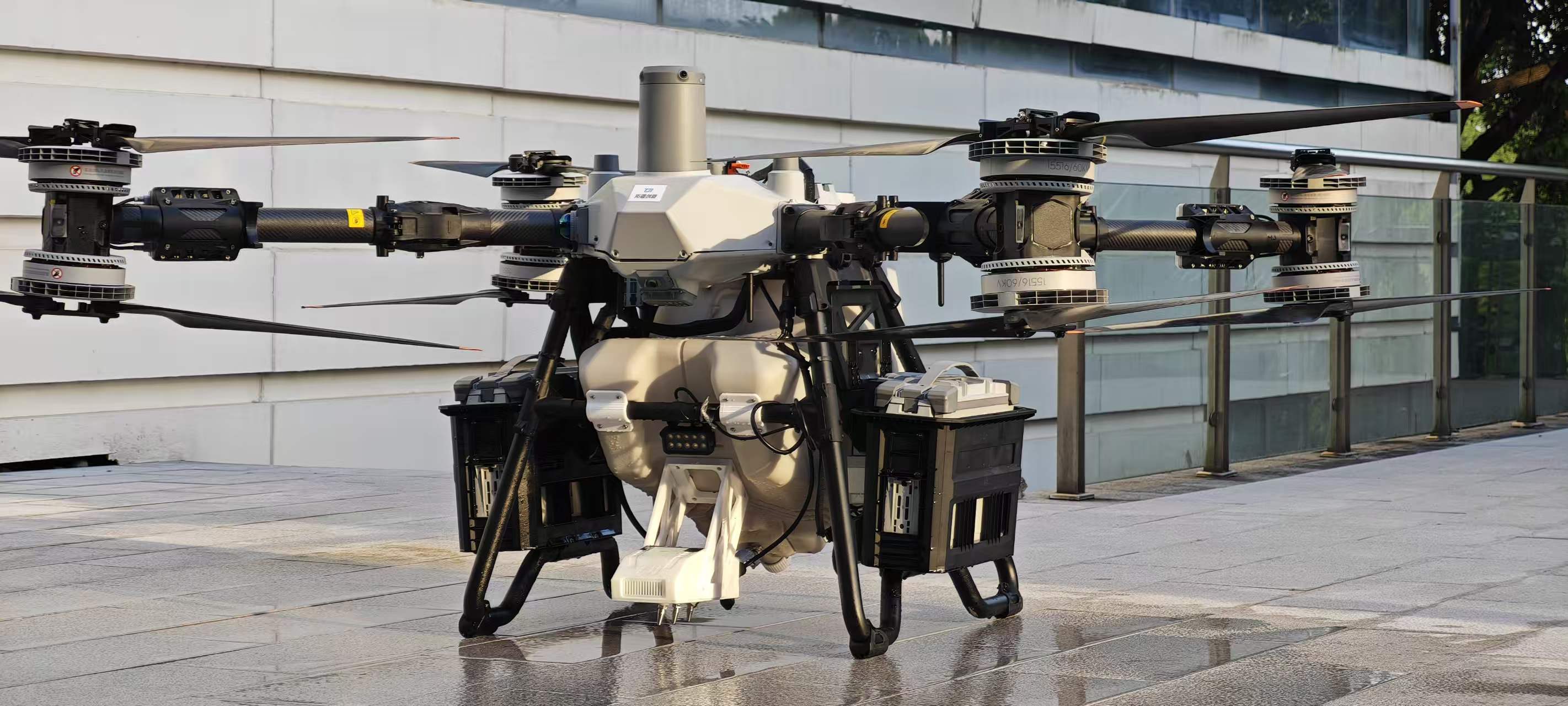

DJI FC100 solar cleaning payload overcomes flight height & remote control limits.
With an 80L water tank and triple-nozzle high-pressure jet system of 15KG max pressure,
it thoroughly cleans PV panels to raise power output.
It supports stepless parameter adjustment via remote controller,
cooperates with 5G cloud platform to assign cleaning tasks remotely,
realizing 24h unattended automatic maintenance for solar power plants.
Ground Solar Power Station
Rooftop PV System
Agrivoltaic Farm
Dusty / Coastal PV Site
| Parameter Item | Specification |
|---|---|
| Product Weight | Less than 8kg (excluding water tank) |
| Nozzle Assembly Dimension | 1120371263mm |
| Water Pump Quantity | 2 units |
| Water Pump Pressure | 10–15 MPa |
| Rated Power | 2500W |
| Operating Voltage | 36–72V |
| Communication Protocol | PSDK |
| Spray Nozzle Count | 3 pcs |
| Mounting Method | 1/4 Quick Disconnect Mount |
| Swing Angle of Nozzle Assembly | 5° ~ 65°, electrically adjustable |
| Optional Spray Nozzle Angles | 0° / 15° / 25° / 40° |
| Water Flow Rate | 5–20 L/min, electrically adjustable |
10+ Years | Specializing in the R&D and manufacturing of industrial UAV intelligent equipment.
✅ Cost-Smart Innovation:
Save 30%+ with factory-direct pricing, no middlemen.
✅ Focus Areas:
Robust drones for agricultural seeding, fertilizing, spraying, cleaning, transportation and security operations.
✅ More Services：
Customization, OEM & modular modification available.
