TDHP | Agricultural & Cleaning Drone Manufacturer

Drone High-Pressure Cleaning Payload Kit | Retrofit & Modification for PV Facade Drones

Dual-Mode Foam & High-Pressure Cleaning

50% Higher Efficiency

Non-Destructive Retrofit for DJI M400, FC100 & All Industrial Drones

5G Smart Control, IPX5 Waterproof, Quick 15-Minute Setup

1. Product Introduction

This industrial drone high-pressure cleaning payload kit

uses dual-mode foam & high-pressure cleaning technology for safe,

efficient high-altitude cleaning.

It fits DJI M400/FC100 drones, enables non-destructive quick installation

and custom retrofitting,

and supports 24/7 automatic operation with vehicle water supply

and 5G cloud control, boosting cleaning efficiency by over 50%.

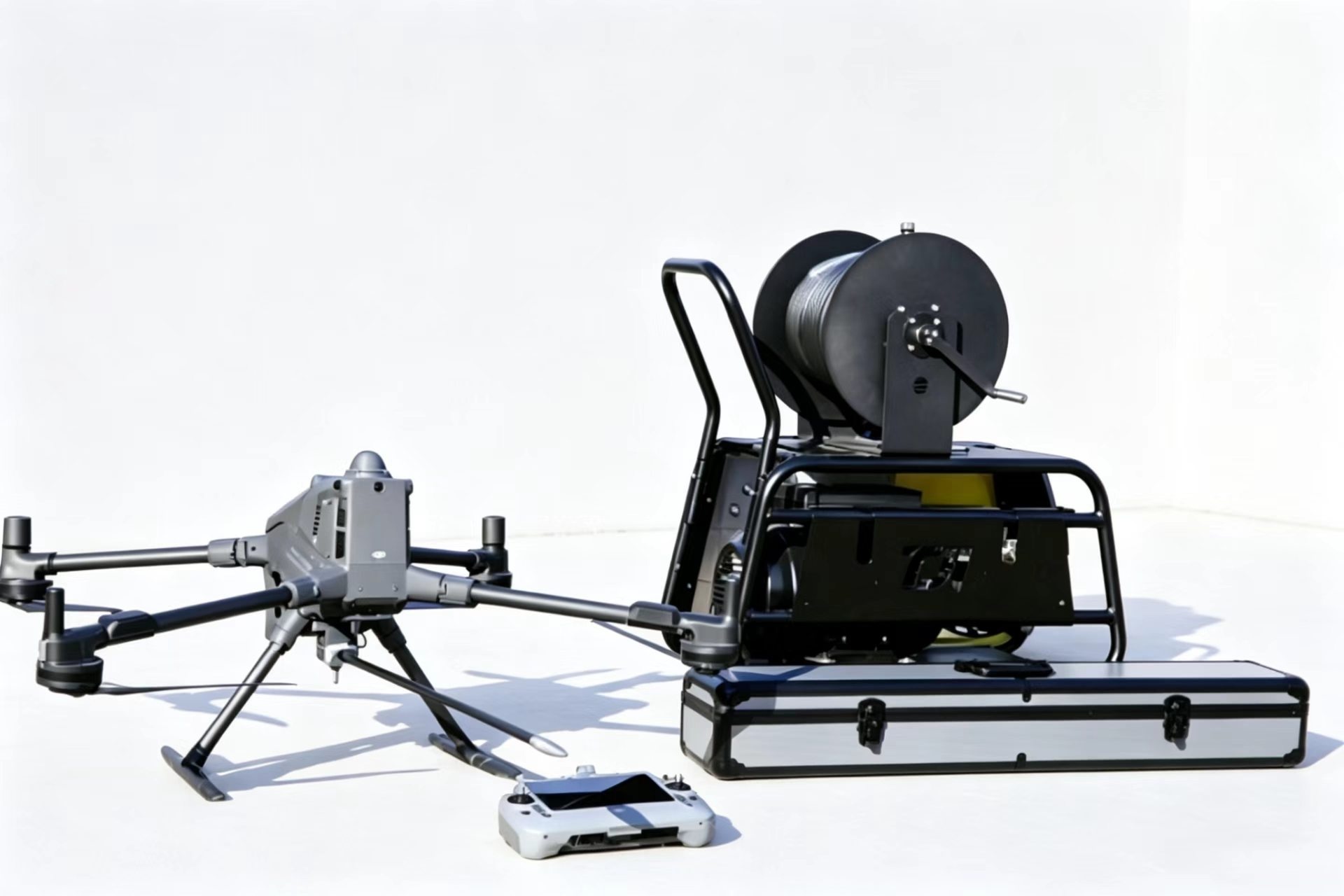

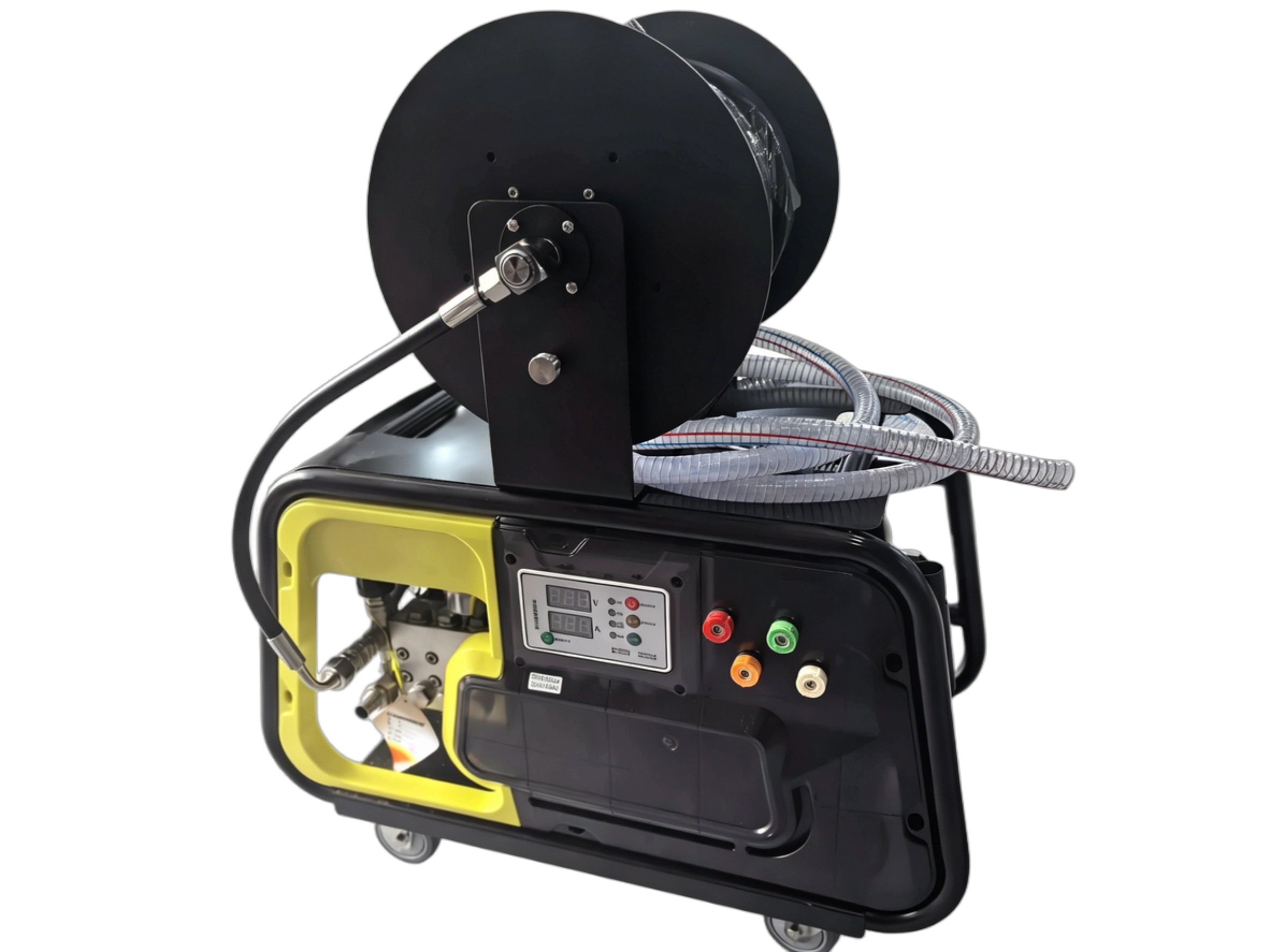

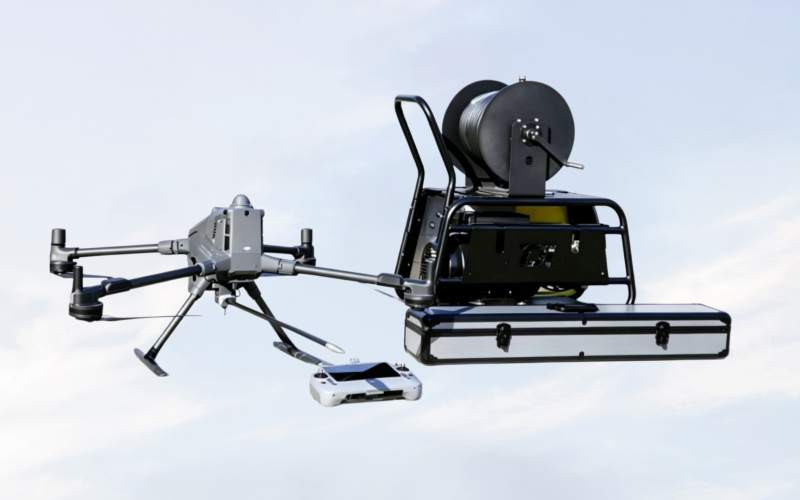

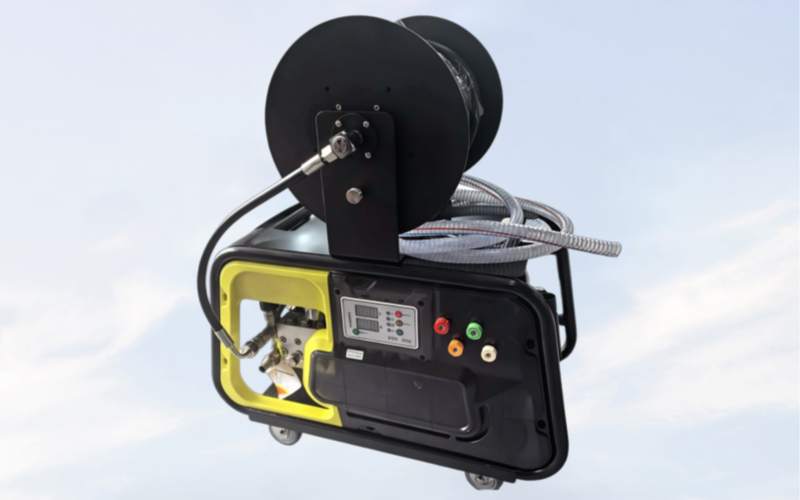

TDHP High-Pressure Cleaning Payload Kit mobile high pressure washer with hose reel

Core Product Series

1. M400 High-Pressure Cleaning Kit

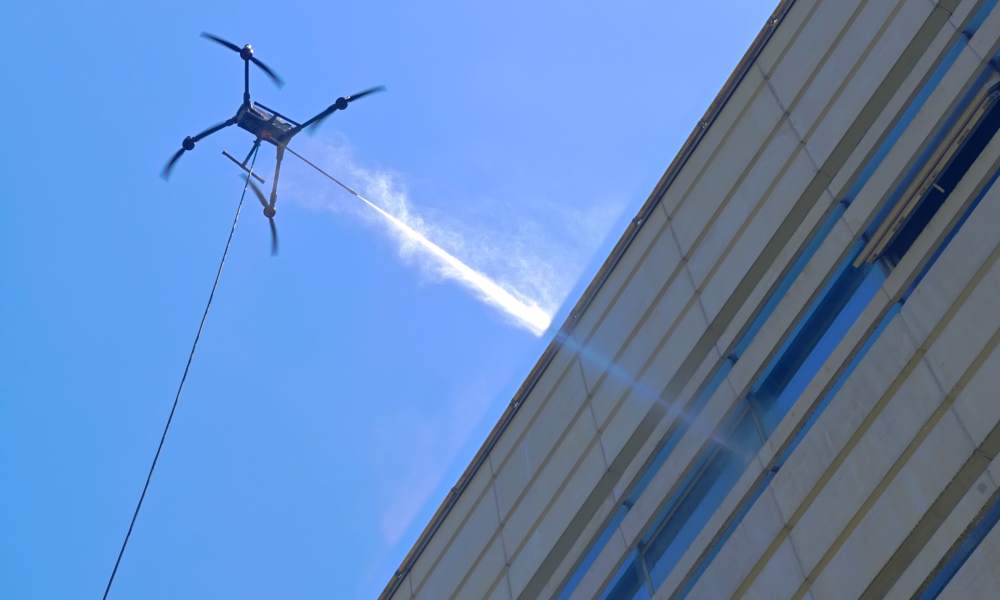

Deep factory adaptation for DJI Matrice 400 drone, designed for rapid on-site deployment and universal cleaning of photovoltaic panels and building facades. Equipped with ultra-light spray gun and high-pressure resistant hose, it supports fast 15-minute on-site assembly and delivery, matched with environmentally friendly special cleaning agent for efficient removal of dust, bird droppings and oil stains.

2. FC100 Intelligent Tethered Cleaning Kit

Intelligent upgraded tethered continuous operation design, with ultra-long pipeline and adjustable industrial high water pressure. It supports electric automatic swing spraying and 5G cloud real-time data upload and archiving. Two professional configurations are available: building facade dedicated version and photovoltaic special version, meeting refined cleaning needs of different high-altitude scenarios.

Core Product Series

M400 High-Pressure Cleaning KitFully compatible with DJI Matrice 400. It features lightweight accessories and fast 15-minute setup, delivering efficient cleaning for PV panels and building facades against dust, bird droppings and stains.

FC100 Intelligent Tethered Cleaning KitAdopts tethered continuous operation with long-distance pipeline and adjustable high pressure. It supports automatic swing spraying and 5G cloud data recording, with two dedicated versions for precise facade and photovoltaic cleaning.

2,product video

3，Performance Parameters

M400 Cleaning Kit Parameters

Item	Specification
Spray Gun Weight	350g (ultra-light design)
System Working Pressure	200bar
Water Flow Rate	20L/min
Hose Length	80m / 120m (optional)
Matched High-Pressure Unit Weight	52kg

FC100 Intelligent Cleaning Kit Parameters

Item	Specification
Overall Weight	＜8kg (excluding water tank)
Adjustable Water Pressure	10~15MPa
Nozzle Configuration	3 optional nozzles, adjustable spray angle
Intelligent Function	5G cloud upload, one account per gun management
Max Pipeline Working Length	200m
