DJI M400 High-Pressure Cleaning Payload

High-Pressure Cleaning Payload

DJI M400 Compatible

Smart APP Control

Automated Parameter-Based Cleaning

Water & Foam Cleaning Modes

High-Pressure Cleaning Payload

DJI M400 Compatible

Smart APP Control

Automated Parameter-Based Cleaning

Water & Foam Cleaning Modes

1, Product Overview

The Drone High‑Pressure Cleaning Payload Kit is a dedicated M400 cleaning module: mount it on a DJI Matrice 400 and the aircraft works as a drone pressure washer for high‑rise building glass facade cleaning and other professional exterior surface cleaning applications.

The system integrates a lightweight cleaning spray gun with a smart cleaning APP, allowing operators to control both the drone and cleaning system through a single DJI remote controller — effectively a complete DJI Matrice 400 cleaning kit.

With configurable cleaning parameters and multiple operating modes, the system supports more efficient and intelligent cleaning operations.

WillFly Drone high-pressure cleaning payload kit with hose reel for DJI M400

2, Key Features

  • 1, DJI M400 Compatible — Built for the DJI M400 platform. The FC100 uses its own dedicated cleaning module; the two are not interchangeable. The ground high-pressure pump unit is shared, while the module mounting differs by aircraft.

  • 2, One‑Controller Operation — The cleaning APP can be installed on the drone remote controller, eliminating the need for an additional control terminal.

  • 3, Smart Cleaning APP — A graphical interface makes equipment control, parameter configuration, and operation straightforward.

  • 4, Customizable Cleaning Parameters — Configure drone horizontal speed, spray gun swing range, swing speed, and vertical movement speed.

  • 5, Real‑Time Monitoring — Supports real‑time video transmission and cleaning status monitoring.

  • 6, Fast Installation — The payload can be installed in less than 5 minutes for quick deployment.

  • 7, Dual Cleaning Modes — Supports both clean‑water and foam cleaning modes.

3, Compatible Drone Platforms

DJI M400

WillFly Drone high-pressure cleaning payload kit with hose reel for DJI M400

4, Technical Specifications

1, Spray Gun

Dimensions900 × 35 × 50 mm
Weight350 g
MaterialAluminum Alloy
Spray Angle0° Direct Spray

2, Operators can configure key parameters including:

  • Drone horizontal flight speed

  • Spray gun swing range

  • Spray gun swing speed

  • Drone vertical movement speed

5, Field Applications

The system is primarily designed for building glass facade cleaning — the core job of any window cleaning drone — and can also be adapted to other complex exterior cleaning applications, including:

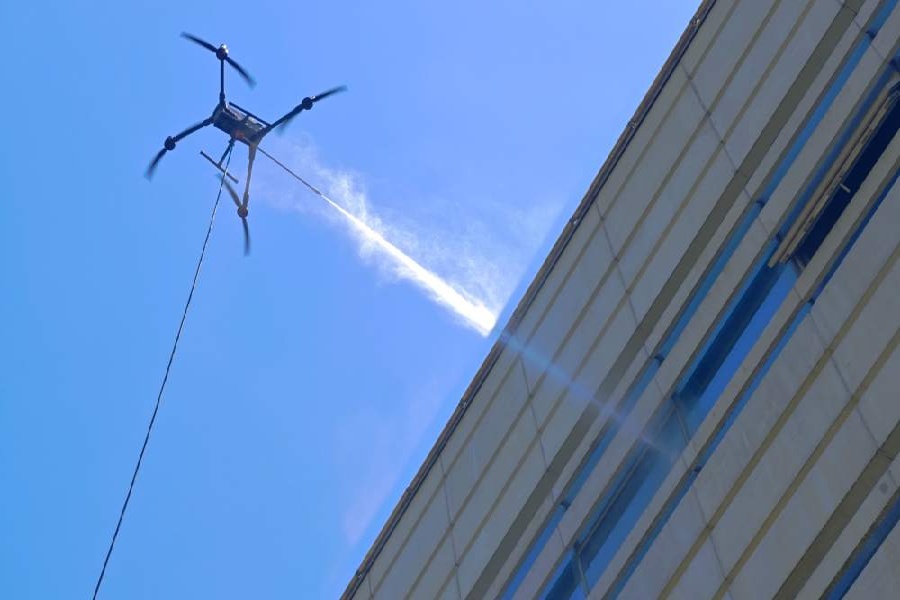

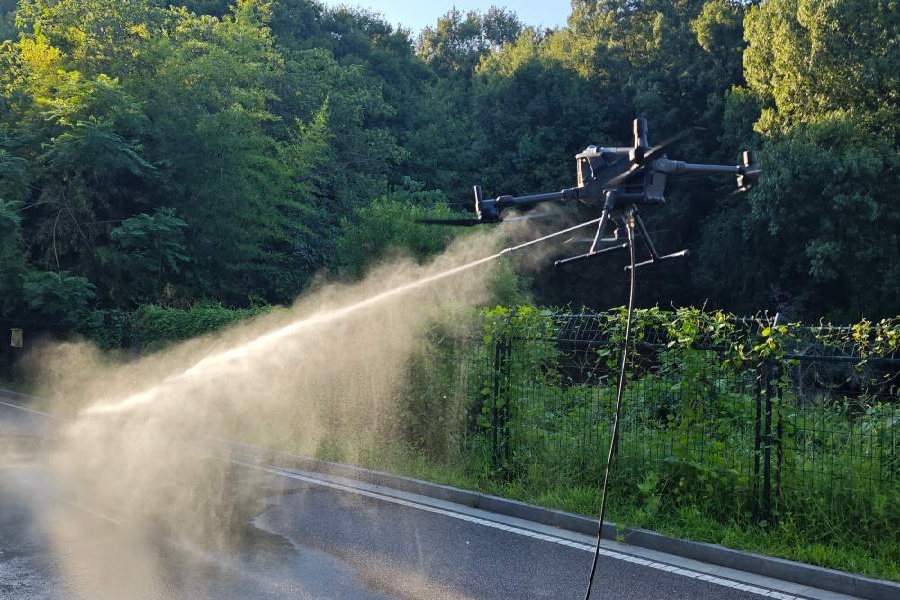

6, Field Test / Case Study

WillFly Drone high-pressure cleaning payload kit with hose reel for DJI M400

7, FAQ

1, Which drones are compatible with this cleaning payload?

The system is designed for the DJI M400 platform.

2, Does it require an additional remote controller?

No. The smart cleaning APP can be installed on the drone remote controller, allowing the operator to control the drone and cleaning system through one controller.

3, Can the cleaning parameters be customized?

Yes. Operators can configure parameters such as drone horizontal speed, spray gun swing range, swing speed, and vertical movement speed.

4, Does the system support automatic cleaning?

Yes. After the required parameters are configured, the system can perform automatic cleaning according to the preset operating parameters.

5, How long does installation take?

The payload can be installed in less than 5 minutes.

6,Are you a manufacturer or a trading company?

We are a direct manufacturer with in-house R&D, production and quality control in Suzhou, China. OEM/ODM projects are welcome.


7, How much pressure does it produce, and will it damage glass?

The pump delivers a peak of 160 bar (20 MPa) at the water line. At the glass surface, working pressure is held between 3.0 and 4.5 bar and adjusted by facade material, which is safe for coated and Low-E glass. A final rinse with pure water prevents streaks.

8, How much facade can one team clean per day?

A two-person crew, one pilot and one ground operator, typically cleans 5,000 to 6,000 square meters per day. That is roughly three to five times faster than a rope access team on the same building.

9, How long is the hose, and how high can it clean?

An 80 m lightweight hose rated for acid and alkali exposure comes as standard, covering most mid- and high-rise buildings. For taller towers, contact us with your building height and we will confirm the pump and hose configuration.

10, What ground equipment does the system need?

A high-pressure pump of at least 3,500 W (IP55) plus a water source such as a fire hydrant, tap connection or water tank. Where mains power is unavailable, a generator or EV output can run the pump. The module works with clean water by default; detergent is optional and not included.

Already have a compatible DJI drone? Upgrade your existing platform with a specialized cleaning payload, or compare all models on our cleaning drones for sale page.

8, Related Products

 DJI FC100 Solar Panel Cleaning Payload Kit

WillFly Drone high-pressure cleaning payload kit with hose reel for DJI M400

9, Request a Quote

  • MOQ: 1 set

  • Lead time: 15-30 days after order confirmation

  • Warranty: 12 months

WillFly Drone is a direct drone payload manufacturer in Suzhou, China. We provide OEM/ODM services covering payload design, integration, customization and mass production. Contact us with your drone platform and application for specifications, pricing and delivery information.

Working on ground missions too? We also supply the quadruped robot dog platform for inspection, security patrol and emergency response, built with the same payload-integration approach as our drone payloads.
