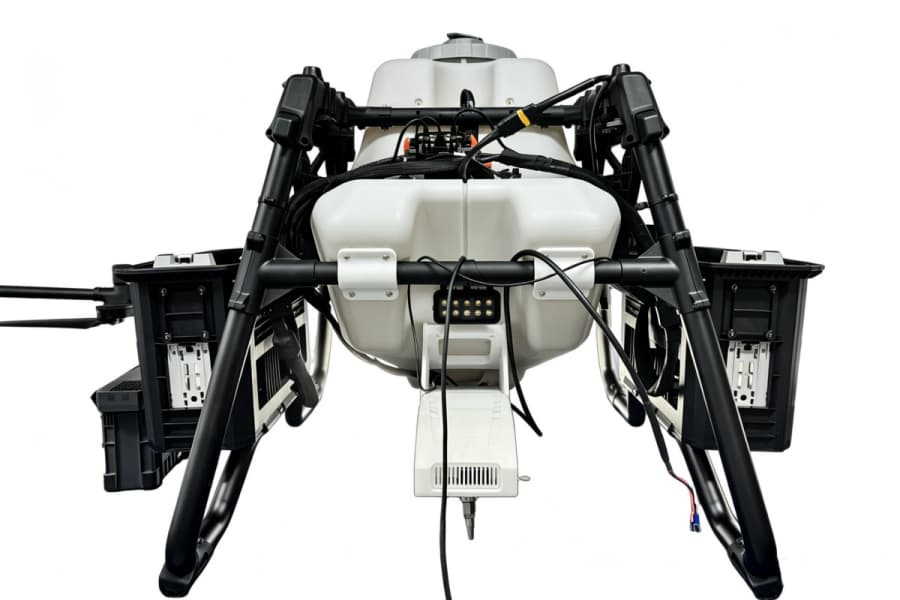

Solar Panel Cleaning Payload for DJI FC100

Lightweight Water Spray Cleaning Module for DJI FC100 & T100

1, Product Overview

This solar panel cleaning drone payload is designed for rooftop and photovoltaic panel cleaning.

Compatible with the DJI FC100 and T100, the system combines a lightweight spray module, integrated water tank, dual water pumps, and adjustable spray control to support efficient drone-based cleaning operations.

With PSDK communication, electrically adjustable spray parameters, and a quick-release mounting system, the module is designed for convenient installation and flexible operation across different cleaning requirements.

2, Key Features

• 1, DJI FC100 & T100 Compatible — Designed for integration with DJI FC100 and T100 drone platforms.

• 2, Lightweight Design — Module weight is less than 8 kg, excluding the water tank.

• 3, 75L Water Tank — Integrated water storage for drone-based cleaning operations.

• 4, Dual Water Pumps — Two pumps provide stable water supply during operation.

• 5, Adjustable Spray Swing — Spray module swing angle can be electrically adjusted from 5° to 65°.

• 6, Adjustable Water Flow — Water flow can be electrically adjusted from 5 to 20 L/min.

• 7, Multiple Nozzle Angles — Supports 0°, 15°, 25°, and 40° nozzle configurations.

• 8, PSDK Communication — Supports integration and communication with compatible DJI drone platforms.

• 9, 1/4 Quick-Release Mounting — Designed for fast installation and removal.

3, Compatible Drone Platforms

DJI FC100, DJI T100

4, Technical Specifications

1, Adjustable Cleaning Configuration

Different solar panel layouts and cleaning conditions may require different spray coverage and water flow settings.

The module supports electrical adjustment of key cleaning parameters, including:

• Spray swing angle: 5°–65°

• Water flow rate: 5–20 L/min

• Nozzle angle options: 0°, 15°, 25°, and 40°

This allows operators to configure the spray system according to the specific cleaning task and site conditions.

2, Quick-Release Installation

The system uses a 1/4 quick-release mounting method, allowing the cleaning module to be installed and removed conveniently.

The modular design makes it easier to prepare the drone for cleaning operations and switch between different payload configurations when required.

5, Applications

The module is primarily designed for:

• Photovoltaic panel cleaning

• Rooftop cleaning

• Large-scale solar installation maintenance

It is suitable for applications where drone-based cleaning can provide a flexible solution for accessing elevated or difficult-to-reach solar panels.

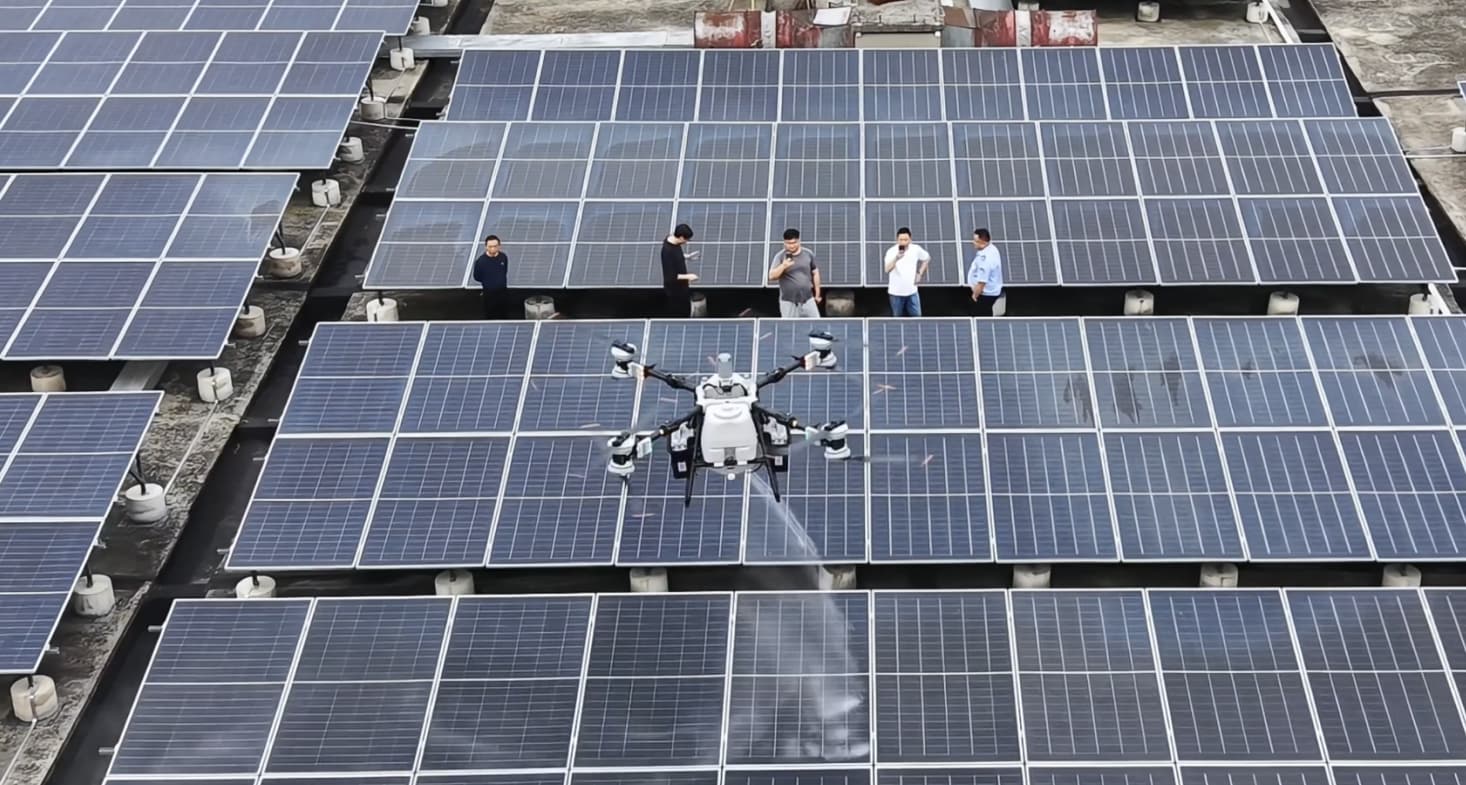

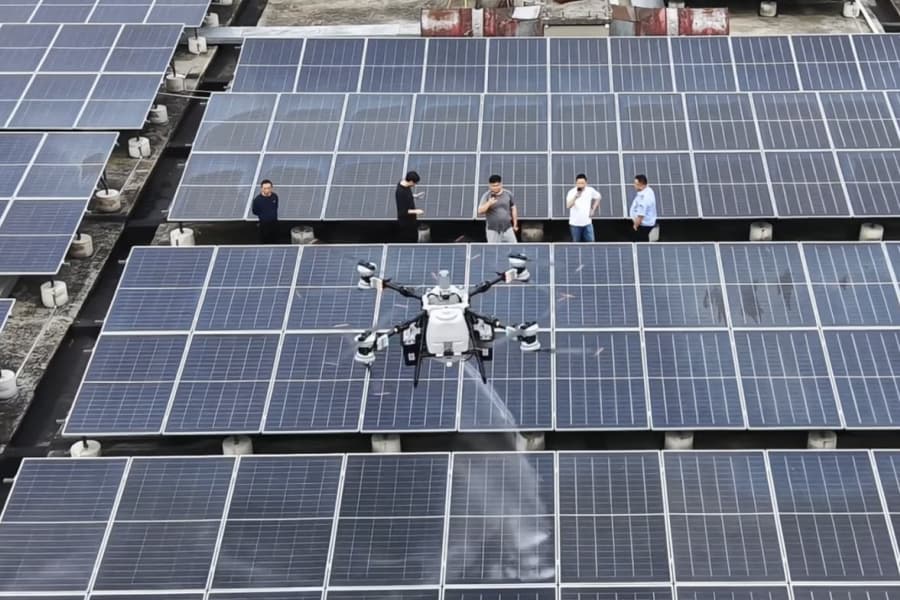

6, Field Test / Case Study

7, FAQ

1, Which drones are compatible with this solar panel cleaning module?

The module is designed for the DJI FC100 and DJI T100.

2, How much does the cleaning module weigh?

The module weighs less than 8 kg, excluding the water tank.

3, What is the water tank capacity?

The system is equipped with a 75L water tank.

4, Can the spray angle be adjusted?

Yes. The spray module swing angle can be electrically adjusted from 5° to 65°.

5, Can the water flow be adjusted?

Yes. The water flow can be electrically adjusted from 5 to 20 L/min.

6, How many nozzles does the system use?

The module is equipped with 3 nozzles.

7 ,What nozzle angles are available?

The available nozzle angle options are:0° / 15° / 25° / 40°

8, Does the module communicate with the DJI drone platform?

Yes. The system uses PSDK communication for integration with compatible DJI drone platforms.

9，Are you a manufacturer or a trading company?

We are a direct manufacturer with in-house R&D, production and quality control in Suzhou, China. OEM/ODM projects are welcome.

Already have a compatible DJI drone? Upgrade your existing platform with a specialized cleaning payload.

8, Related Products: Drone High-Pressure Cleaning Payload Kit for DJI M400 & FC100

9 ,Request a Quote

• MOQ: 1 set

• Lead time: 15-30 days after order confirmation

• Warranty: 12 months
